Description
The impact crusher can process various coarse, medium and fine materials (such as granite, limestone, concrete, etc.) with an edge length not exceeding 500mm and a compressive strength not exceeding 350MPa. It is widely used in the production of artificial sand and gravel in various ore crushing, railway, expressway and construction industries.
Advantages
The multi-functional particle shape is good
It has dual functions of crushing and shaping. The product is cubic in shape, without surface tension or cracks, with good particle shape and high bulk density.
Long life and low cost
The linear plate hammer is made of high-chromium cast iron and features axisymmetric teeth. It can be turned over for use when one section is worn. The impact liner is designed in a zigzag shape. Depending on the wear condition, its position can be adjusted to extend the service life and save costs.
High strength and easy to replace
The frame is composed of three sturdy and anti-twisting box-shaped welded structural components: the base, the middle box frame and the rear upper cover, which are connected to each other with high-strength bolts. To ensure the safe and reliable replacement of vulnerable parts, the hinge-type frame cover can be opened and closed with a ratchet device.
Easy to operate and maintain
Gasket type discharge adjustment device, centralized lubrication system, easy to operate and maintain; The jaw plate is of symmetrical structure. After wear, it can be swapped up and down for use, which extends the service life and saves replacement costs.

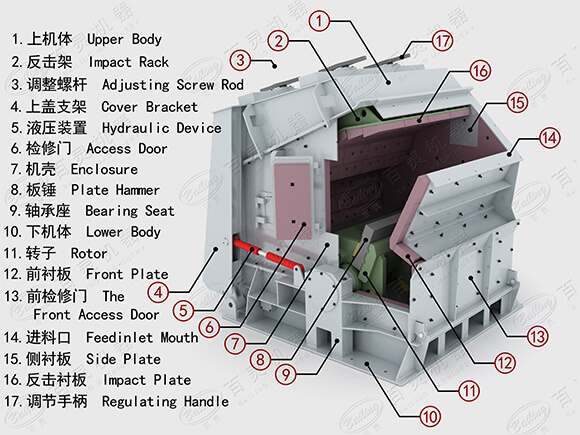

Structure drawing
Parameter
| Model | Specification(mm) | Feed opening size(mm) | Max feed size(mm) | Capacity(t/h) | Motor power(kw) |
| PF-0607 | Φ644×740 | 320×770 | 100 | 10-20 | 30 |
| PF-0807 | Φ850×700 | 400×730 | 300 | 15-30 | 30-45 |
| PF-1008 | Φ1000×800 | 400×830 | 300 | 30-50 | 37-55 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-80 | 55-75 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-120 | 110-132 |
| PF-1212 | Φ1250×1250 | 400×1300 | 350 | 100-150 | 132-160 |
| PF-1214 | Φ1250×1400 | 400×1430 | 400 | 130-180 | 160-200 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 160-250 | 180-260 |
| PF-1320 | Φ1320×2000 | 860×2030 | 500 | 300-350 | 300-375 |
Application Materials
River pebbles, granite, basalt, iron ore, limestone, diabase, etc.
