Description
Hydrocy-clone is a classification device that uses centrifugal force to accelerate the sedimentation of mineral particles. It requires pressure for ore feeding, thus consuming a lot of power. However, it occupies a small area, is inexpensive, has a large processing capacity, high classification efficiency, and can obtain very fine overflow products. It is mostly used for classification operations in the second stage of closed-circuit grinding. Sometimes it is also used for mud dewatering, and it is divided into pressure type and gravity type. It is often made of cylindrical structures or metal pipes.
The Hydrocyclone is a revolutionary product that has taken the industry by storm. As a manufacturer located in China, we are proud to offer the finest quality Hydrocyclones to merchants worldwide. This product is designed to offer a superior level of efficiency and reliability to all industries where solid-liquid separation is required. The Hydrocyclone is a game-changer and with good reason.
What is a Hydrocyclone?
A Hydrocyclone is a device that is used for the separation of solids and fluids. The separation is achieved by spinning a mixture of fluids and particles around a cyclone-shaped container. Water is used as the primary fluid, with the solids being trapped in a filter, while the clean liquid is directed to a separate chamber for further use. The Hydrocyclone makes the separation process more efficient, cost-effective, and reliable for the end-user.
How does the Hydrocyclone work?
The Hydrocyclone essentially works in a way that separates solid and liquid particles by utilizing rotational movement. A mixture of fluid and solid enters the main chamber of the Hydrocyclone, which then spins this mixture at high speeds. This action causes the separation of the fluid from the particles, which are forced to the outer perimeter of the chamber. The clean liquid is then directed to a separate chamber while the particles are trapped in a filter. The entire process is automatic and allows for easy operation with minimal supervision.

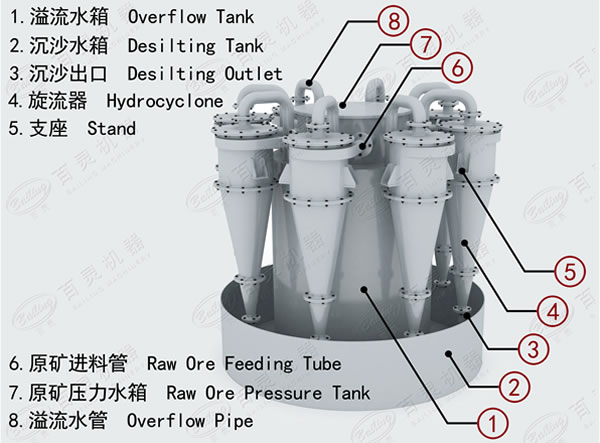

Structure drawing
Advantages
The Hydrocyclone has numerous benefits over traditional methods of solid-liquid separation. Some of these advantages are:
Parameter
| Model | Diameter(mm) | Cone angle(°) | Overflow size(μm) | Capacity(t/h) | Diameter of overflow pipe(mm) | Feeding area(mm²) | Diameter sand dumping mouth(mm) | Overall dimension(mm) | Weight(kg) |
| FX-125 | 125 | 20 | 20-50 | 3.1-6.1 | 14，18，25，35 | 25×10 | 15，25 | 260×320×646 | 57 |
| FX-150 | 150 | 20 | 35-75 | 7.5-15 | 20，40，32，25 | 22×22 | 32，24，16 | 570×426×1123 | 128 |
| FX-250 | 250 | 20 | 40-100 | 10-39 | 26，34，50，69 | 50×20 | 20，25，35 | 852×516×1273 | 205 |
| FX-300 | 300 | 20 | 45-105 | 37-43 | 65，75 | 47×60 | 35，40 | 852×525×1940 | 287 |
| FX-350 | 350 | 20 | 50-110 | 74-90 | 115，105，95 | 80×65 | 80，70，60 | 955×680×2299 | 430 |
| FX-500 | 500 | 20 | 60-120 | 170-220 | 180，160，140 | 110×120 | 110，90，70 | 1090×811×2835 | 718 |
Note:The processing capacity varies for different materials. For detailed information, please call for consultation.
Benefits
The Hydrocyclone is a versatile product that can be used in a vast range of industries that require solid-liquid separation. Some of the industries that can benefit from this product include:
The Hydrocyclone can be used in mineral processing to recover valuable metals and minerals from ore separation.
In the chemical industry, Hydrocyclone can help filter out impurities from chemicals, making it suitable for various applications.
Hydrocyclone can be used in the food industry for removing suspended solids, effectively cleaning raw produce, or removing foreign contaminants.
Hydrocyclone is a must-have in water treatment plants to treat wastewater to make it usable for various purposes. The Hydrocyclone’s efficiency aids water conservation.
Conclusion
The Hydrocyclone is a highly efficient and cost-effective solution for industries that require solid-liquid separation. Its rotating-motion process makes the separation process smooth, thus reducing the processing time and improving productivity. With its capability to work in various industries, it is a must-have product for businesses looking to minimize their carbon footprint while maintaining efficiency in industrial output. Our Hydrocyclones are of the finest quality and we are proud to offer them to merchants around the world. We are confident that Hydrocyclone will be an asset in every industry that requires a solid-liquid separation process.
The hydro-cyclone is a grading device that uses centrifugal force to accelerate the sedimentation of ore particles. It requires pressure to mine, so it consumes a lot of power, but it has a small footprint, low price, large processing capacity, high classification efficiency, and can obtain very fine overflow products, which are mostly used for classification work in the second stage closed-circuit grinding. Sometimes used for mud dewatering, divided into pressure and gravity, often made of cylindrical structures or metal tubes.
