Description

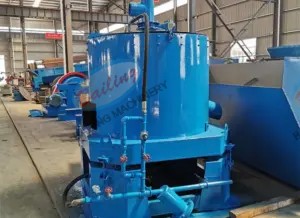

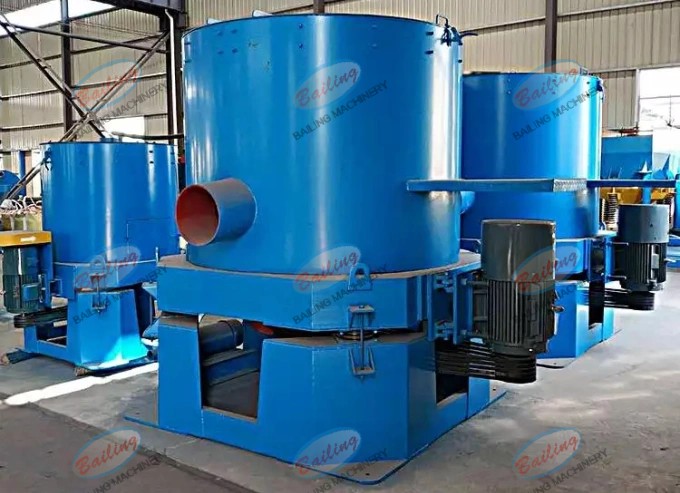

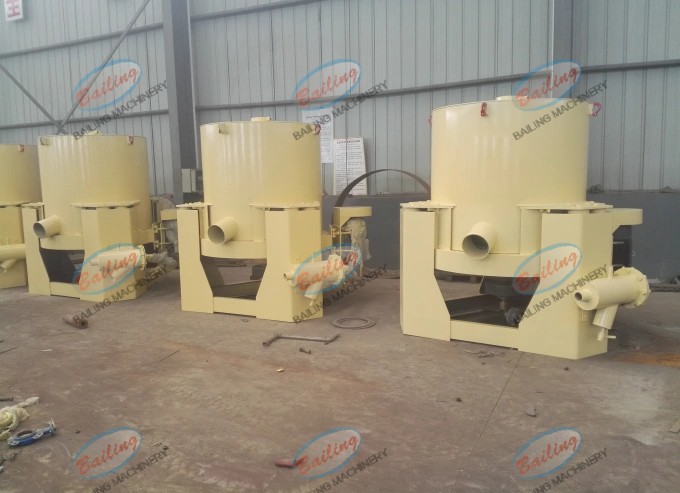

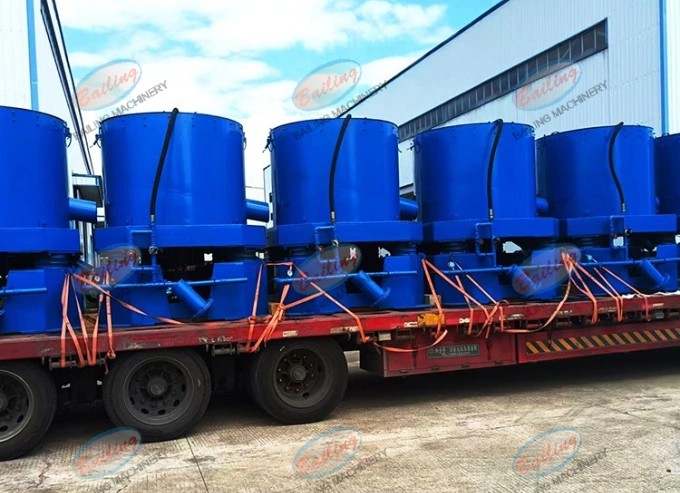

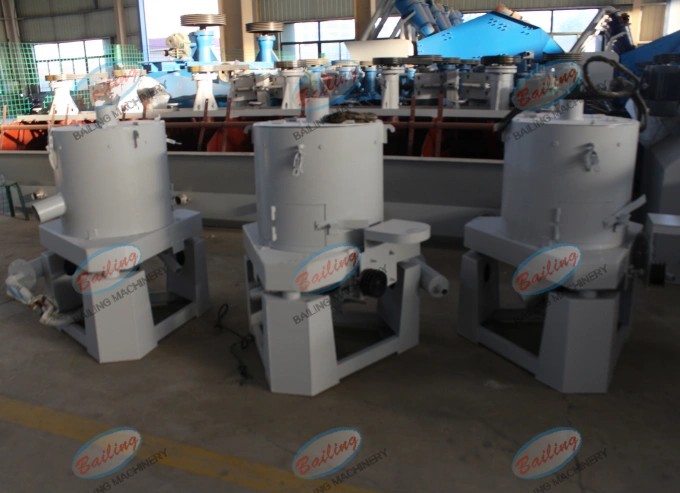

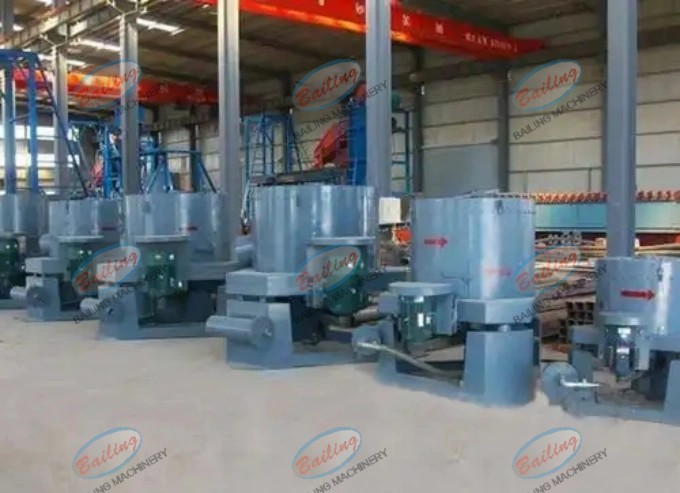

The centrifugal gold concentrator efficiently separates gold particles by utilizing the centrifugal force of high-speed rotation, without the need for chemical additives. It is environmentally friendly and highly adaptable.
Advantages
High separation efficiency
Compared with traditional gravity mineral processing equipment, its centrifugal force can reach tens or even hundreds of times the gravitational acceleration, effectively capturing fine-grained gold minerals.
Strong adaptability
It is suitable for various types of ore deposits such as placer gold and rock gold, and has a good recovery effect on gold particles with a particle size ranging from 0.01 mm to 5 mm.
Easy operation
With a high degree of automation, the sorting effect can be optimized by adjusting the drum speed and feed volume, reducing the intensity of manual operation.
Lower energy consumption
Modern models adopt energy-saving motors and optimized transmission designs, significantly reducing energy consumption per unit processing capacity compared to earlier equipment.
Parameter
| Model | Processing capacity(t/h) | Power(kw) | Standard feed size(mm) | Feed concentration(%) | Backlash water quantity(t/time) | Concentrates capacity(kg/time) | Cone rotation speed(r/min) | Pressure water(mpa) | Weight(t) |
| STL-30 | 3-5 | 3 | 0-4 | 0-50 | 6-8 | 10-20 | 600 | 0.05 | 0.5 |
| STL-60 | 15-30 | 7.5 | 0-5 | 0-50 | 15-30 | 30-40 | 460 | 0.16 | 1.3 |
| STL-80 | 40-60 | 11 | 0-6 | 0-50 | 25-35 | 60-70 | 400 | 0.18 | 1.8 |
| STL-100 | 80-100 | 18.5 | 0-6 | 0-50 | 50-70 | 70-80 | 360 | 0.2 | 2.8 |
